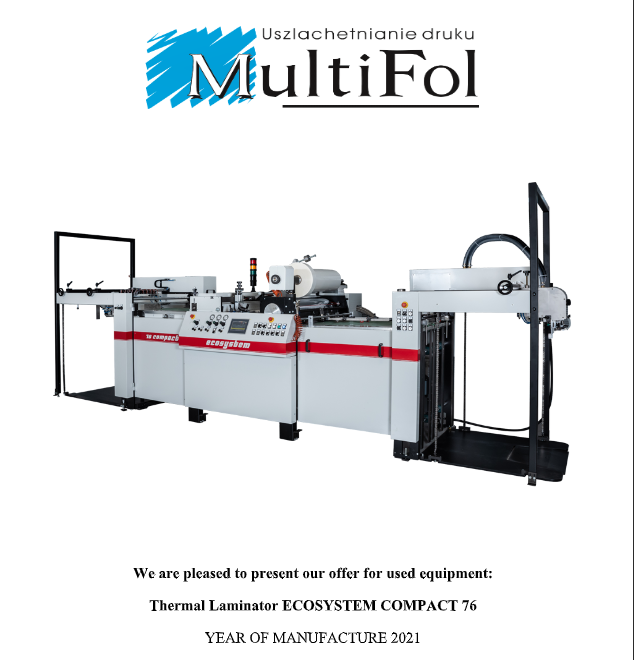

We are pleased to offer you the ECOSYSTEM COMPACT 76 thermal laminator, a
professional industrial solution for high-quality print finishing. This machine is designed to
deliver exceptional productivity, reliability, and precision across a wide range of laminating
materials.
TECHNICAL SPECIFICATIONS
Max. sheet size (W x L): 760 x 1060 mm
Min. sheet size: 210 x 250 mm
Max. mechanical speed: 60 m/min*
Feeder output: up to 10,000 sheets/hour*
Paper weight: 115 – 600 gsm
Max. film width: 750 mm
Max. film roll diameter: 350 mm
Film core diameter: 3”
Working height (including pallet): 900 mm
Max. pile weight (including pallet): 750 kg
*Production speed depends on the materials used and operator skill.
POWER AND INSTALLATION REQUIREMENTS
Electrical supply: 400 V, 3-phase + PE, 50 Hz
Power consumption: 31 kW
Compressed air: 700–900 nl/min at 8 bar
(Air compressor not included in the delivery.)
MACHINE COMPONENTS
Automatic sheet feeder with suction table, electronically controlled feeding and timing
(PIAB system)
Film unwinder with inline trimming system
Laminating unit with chrome-plated heated calender (water-circulation heating) and
rubber pressure roller
External water heater unit with pressure system, pipework, and shut-off valves for the
laminating calender
Sheet separation group with smoothing system, film perforation via abrasive wheel,
and separation rollers
Hot knife system with Scatec laser correction – suitable for metallized PET, nylon,
embossed and special films
Function description:
The hot knife system ensures precise and clean separation of the laminated
film from the sheet edges, regardless of the material type. The integrated
Scatec laser correction system continuously monitors sheet positioning and
automatically adjusts the cutting position, guaranteeing perfect alignment
of the film with the print edges. This results in minimal error margins and
high repeatability, even at high production speeds.
Automatic stacker
Touchscreen control panel
Remote assistance system via Ethernet (client provides ADSL connection)
CE-compliant operation manual
Spare pressure roller with bearings and dedicated transport cart
OFFERED PRICE: 80 000 € netto
Should you be interested in this offer or require further technical or commercial details, please
do not hesitate to contact us.
